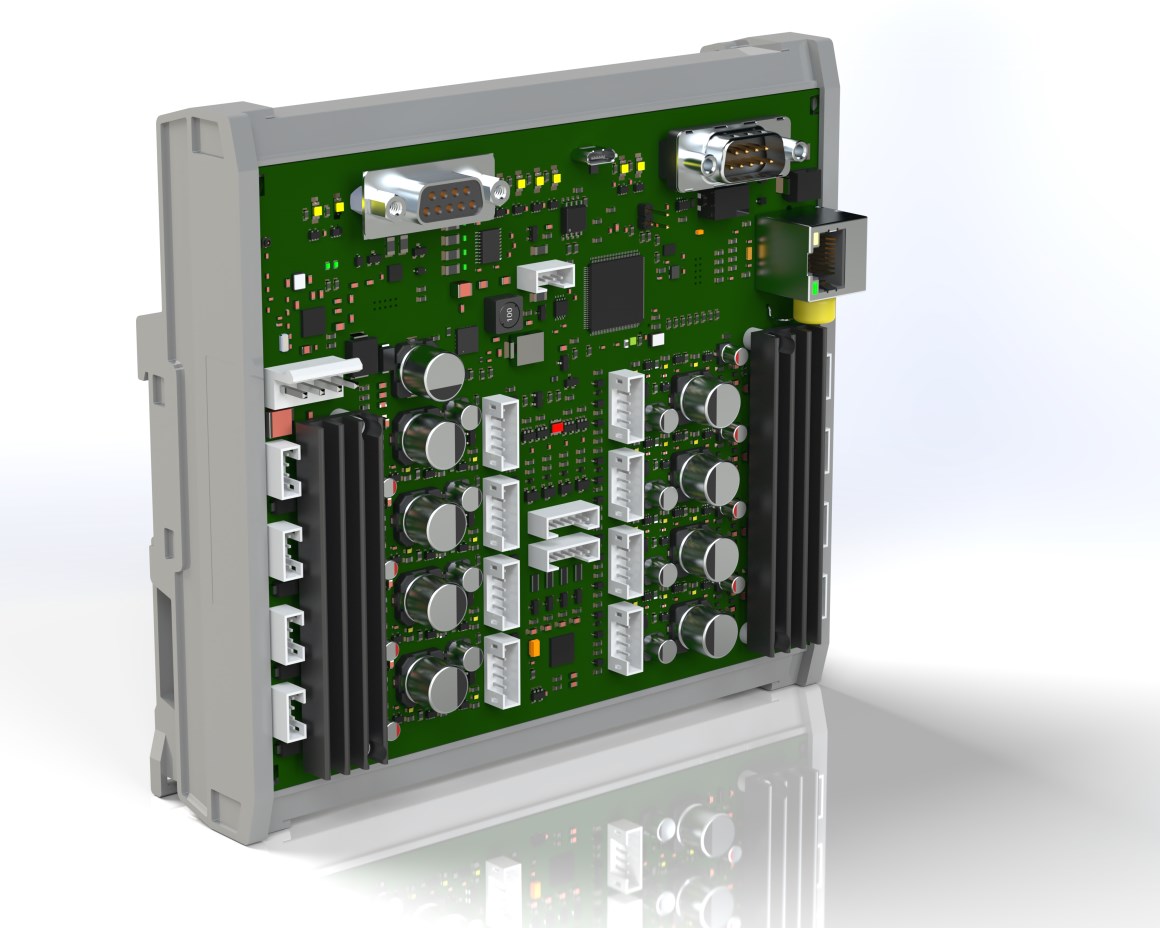

Universal High-performance Motor Controller

  1. Home
  2. Products
  3. Universal High-performance Motor Controller
Big features in a small package

The programmability and flexibility of a high-end motion control in a low-cost design

Features/Benefits:

Up to 8 independently configurable motion channels:

  • Brushed motors up to 5 amps (10 amps peak)
  • Brushless DC motors up to 5 amps (7 amps peak)
  • Stepper motors up to 5 amps (8 amps peak)

Per Channel

  • Programmable limit switch input
  • Hall Sensor inputs (for Brushless DC)
  • Differential/single ended encoder inputs
  • Programmable overcurrent
  • 24-bit position register
  • Tunable PID position control
  • Tachometer input

Specifications

  • Input voltage 10-30 volts (12 and 24 volt operation)
  • General purpose 4 discrete inputs (24 V input)
  • General purpose 4 discrete outputs (24 V output, PWM)
  • General purpose 2 analog inputs (0-10 V)
  • Supercapacitor backed real-time clock
  • -20 to 70°C degrees temperature range
  • Configurable via free downloadable GUI thru USB or Ethernet

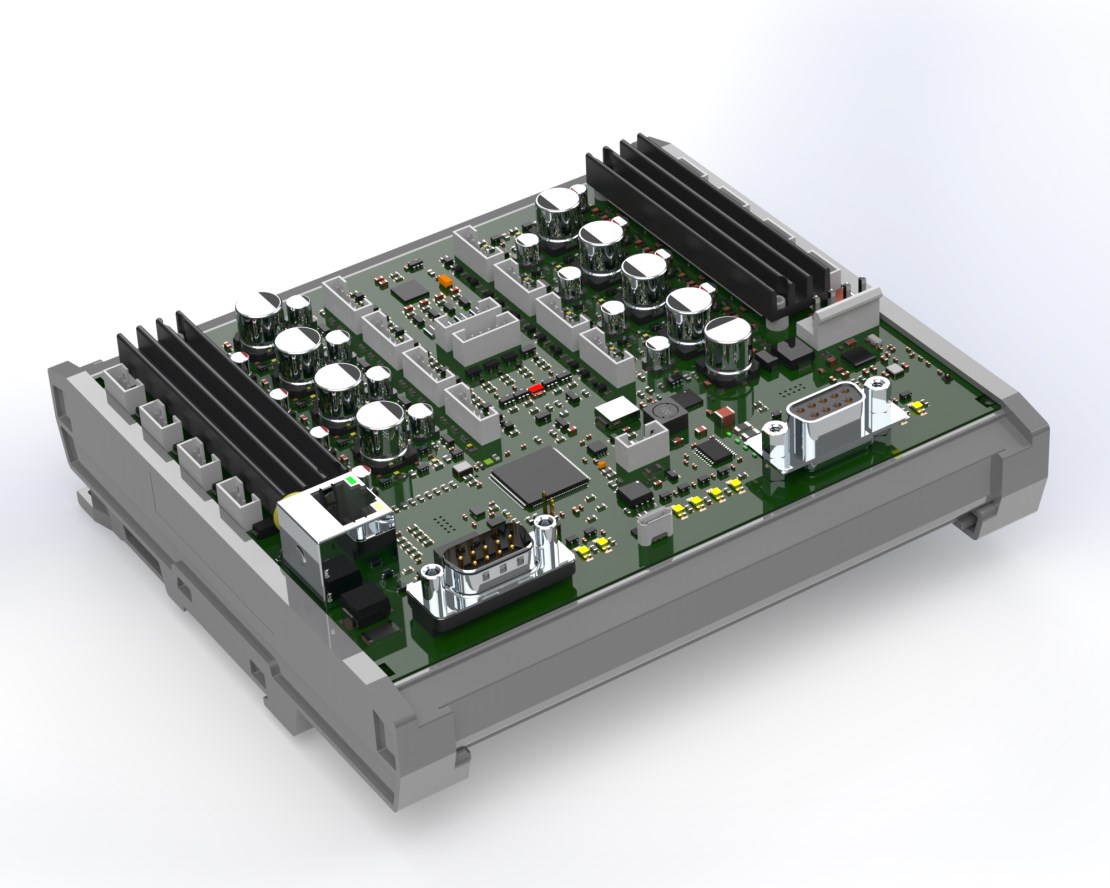

  • Mounting: DIN rail mountable or bare board with 4 mounting holes
    • Plastic housing with Snap in 35 mm DIN rail housing, 2-inch height from rail
    • Bare Board size: 5.8 inches with 4 0.125-inch size mounting

Communications Options

  • USB (Full Speed)
  • RS-232
  • RS-485 (2 wire)
  • CAN (CANopen)
  • BLE (Bluetooth Low Energy)
  • Ethernet

Universal High-performance Motor Controller

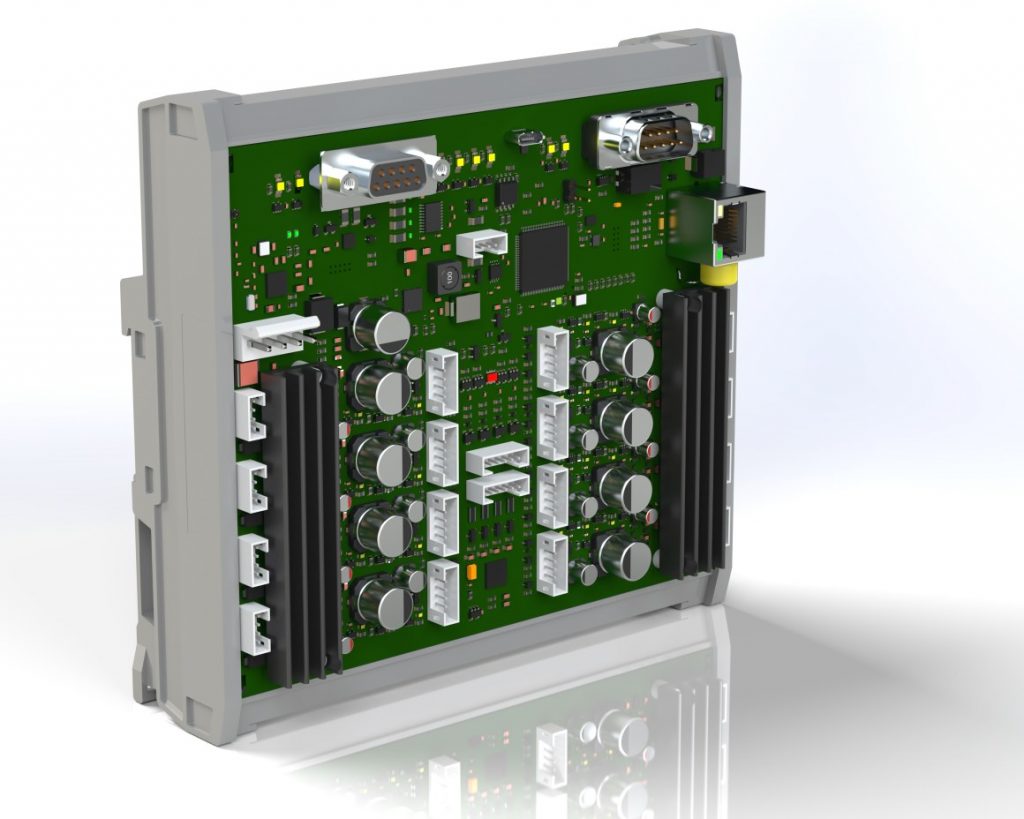

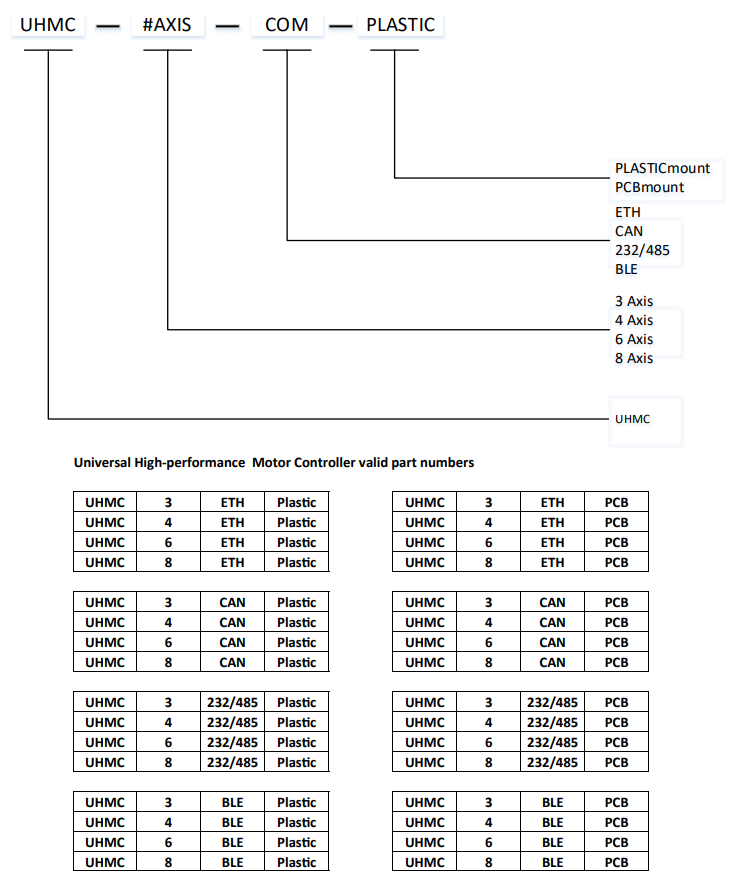

Part Number Configuration
