Multi Axis Stepper Motor Controller

  1. Home
  2. Products
  3. Multi Axis Stepper Motor Controller
Big features in a small economic package.

The programmability and flexibility of a high-end stepper in a low cost design.

Features/Benefits:

  • 7 Amp peak current per motor (3 Amp steady)
  • Overcurrent protection per motor
  • Up to 1/16 micro stepping
  • Under voltage lockout protection
  • Predictive current control with adaptive delay
  • Programmable speed profiles

Programmable For

  • Position control
  • Speed control
  • Speed control with limit switches
    • HOME, STOP_CW, STOP_CCW

Specifications

  • Input voltage 10-30 Volts (12 and 24Volt operation)
  • General purpose 4 discrete inputs (24V input)
  • General purpose 4 discrete outputs (24V output, PWM)
  • General purpose 2 analog inputs (0-10V)
  • 8 independently programmable 3.5 Amp Stepper channels
  • Supercapacitor backed Real Time Clock
  • -20 to 70 degrees temperature range
  • Configurable via free downloadable GUI thru USB or Ethernet
  • Mounting: din rail mountable or bare board with 4 mounting holes
    • Plastic housing with Snap in 35 mm din rail housing, 2-inch height from rail
    • Bare Board size: 5.8” with 4 0.125-inch size mounting

Communications Options

  • USB (Full Speed)
  • RS-232
  • RS-485 (2 wire)
  • CAN (Can Open)
  • BLE (Blue tooth Low Energy)
  • Ethernet

Control Options (protocols)

  • Modbus TCP/IP
  • Ethernet IP
  • Ethercat
  • OPCUA
  • MQTT

Universal High-performance Motor Controller

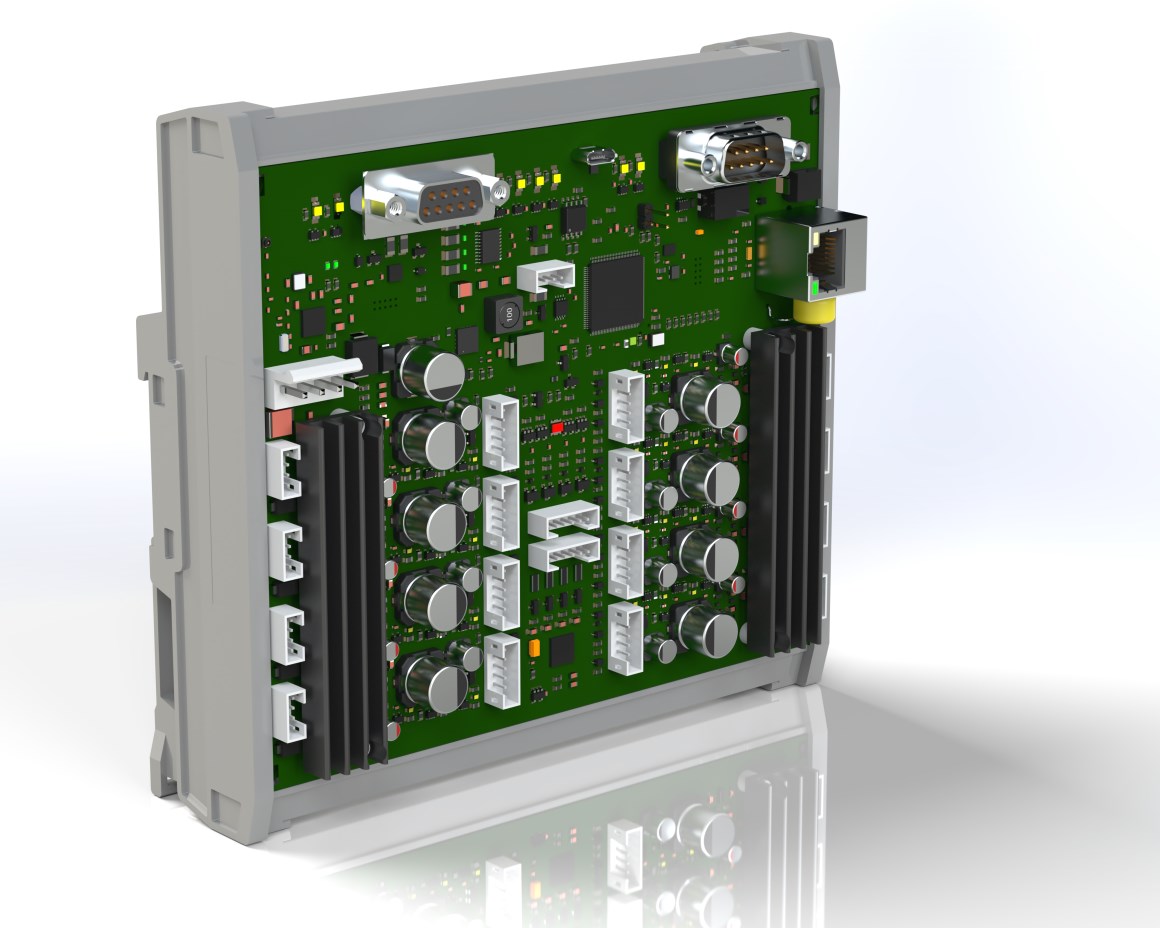

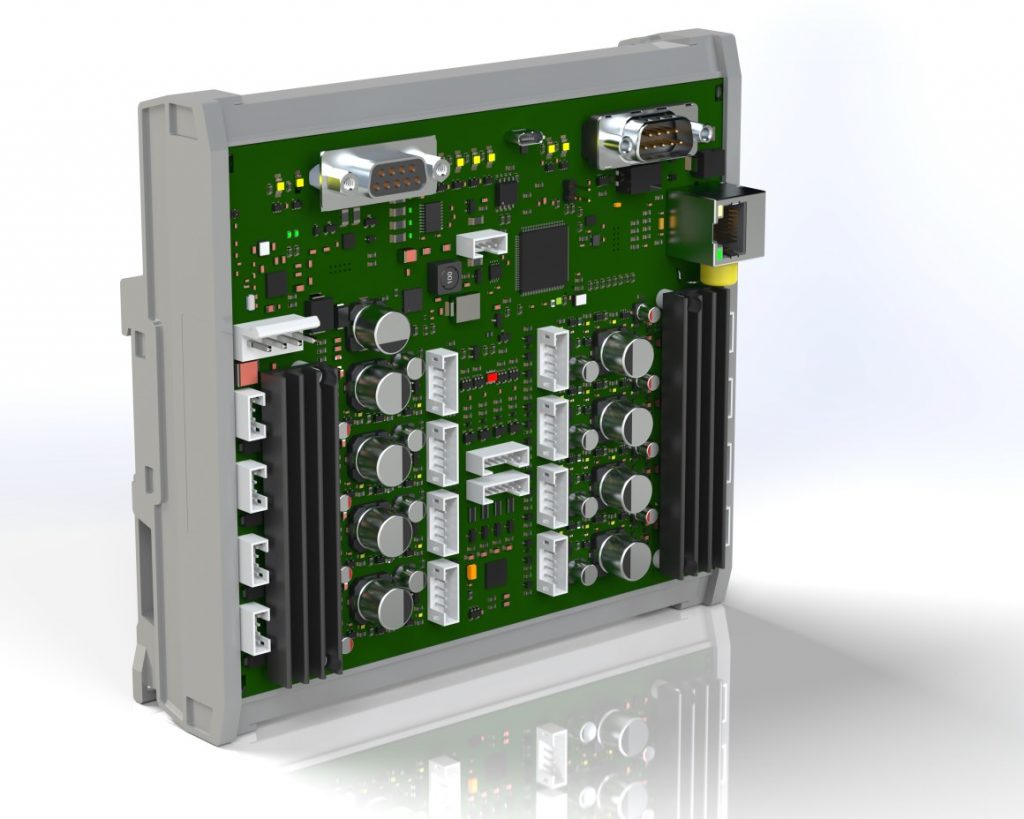

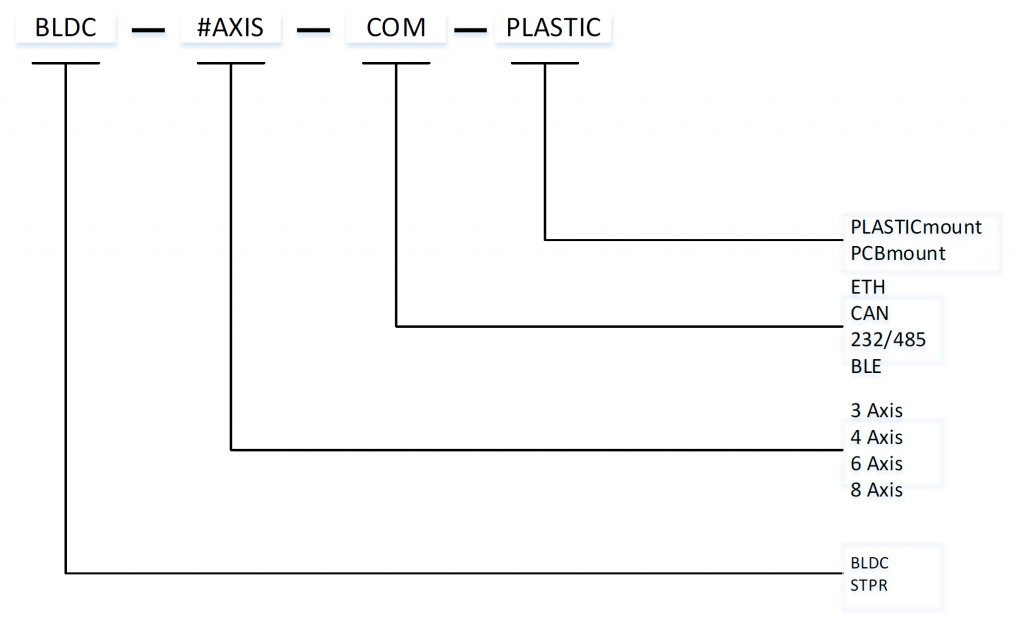

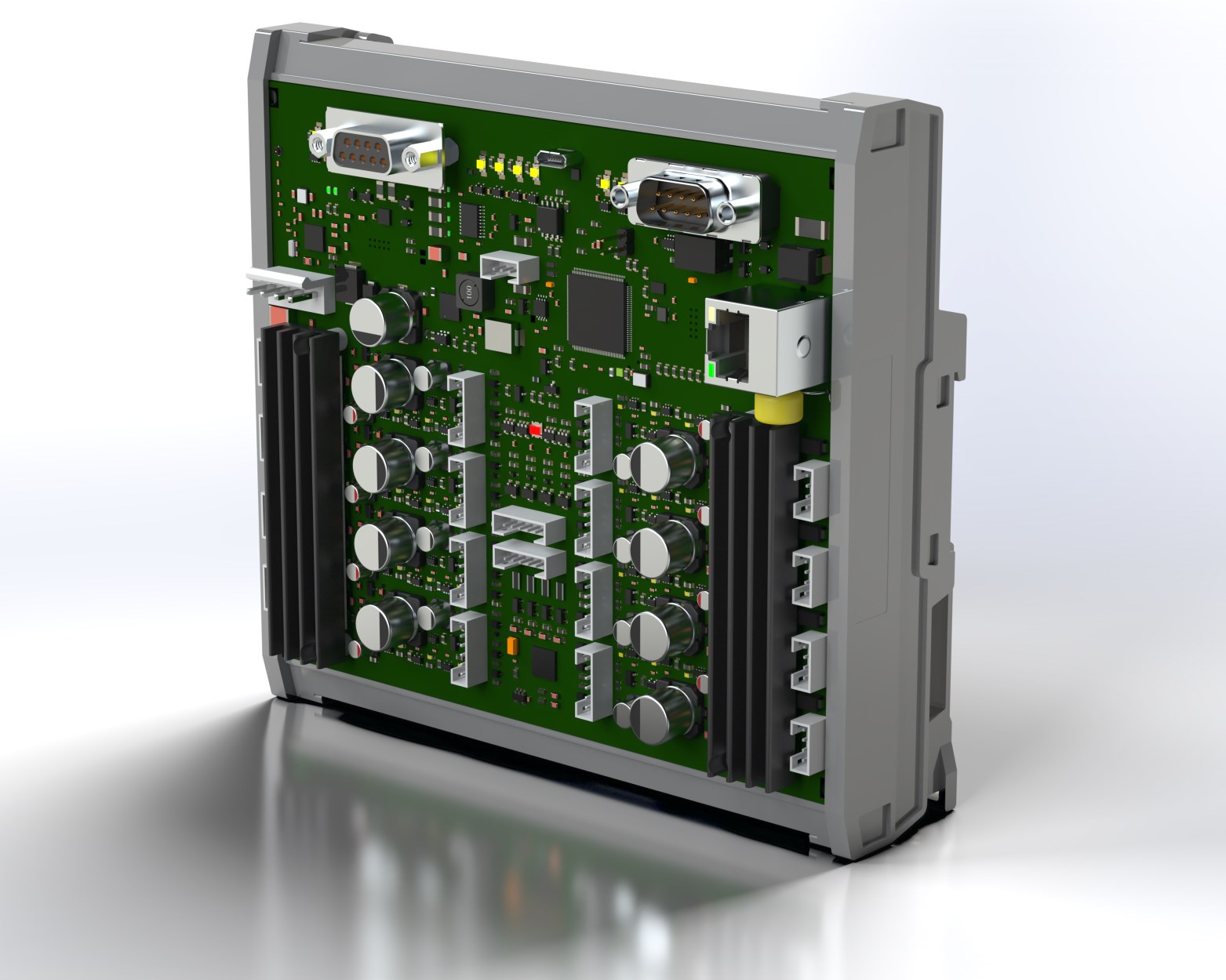

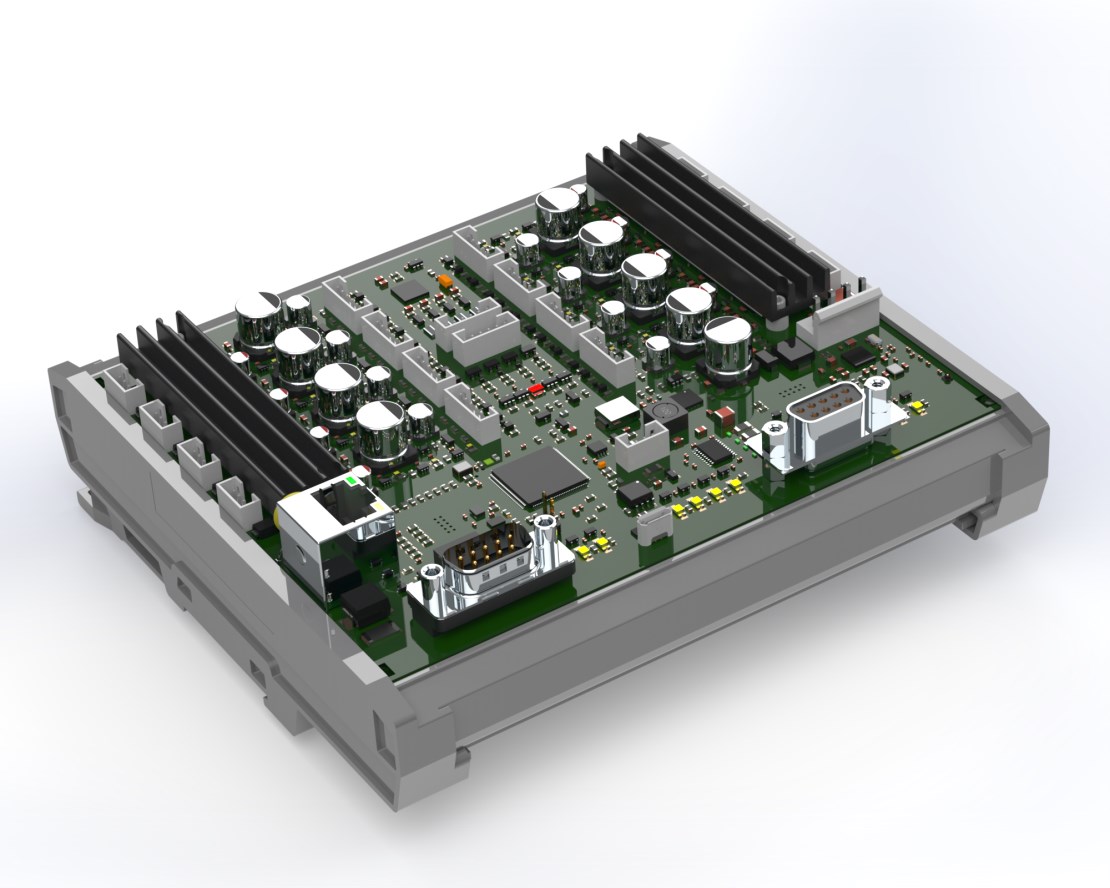

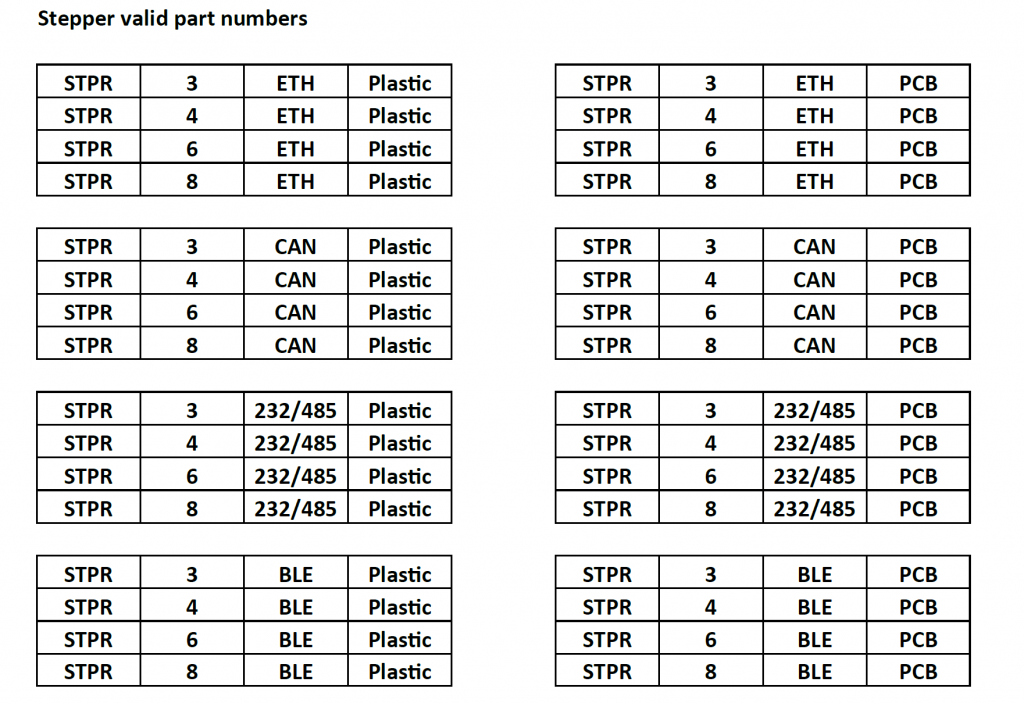

Part Number Configuration
