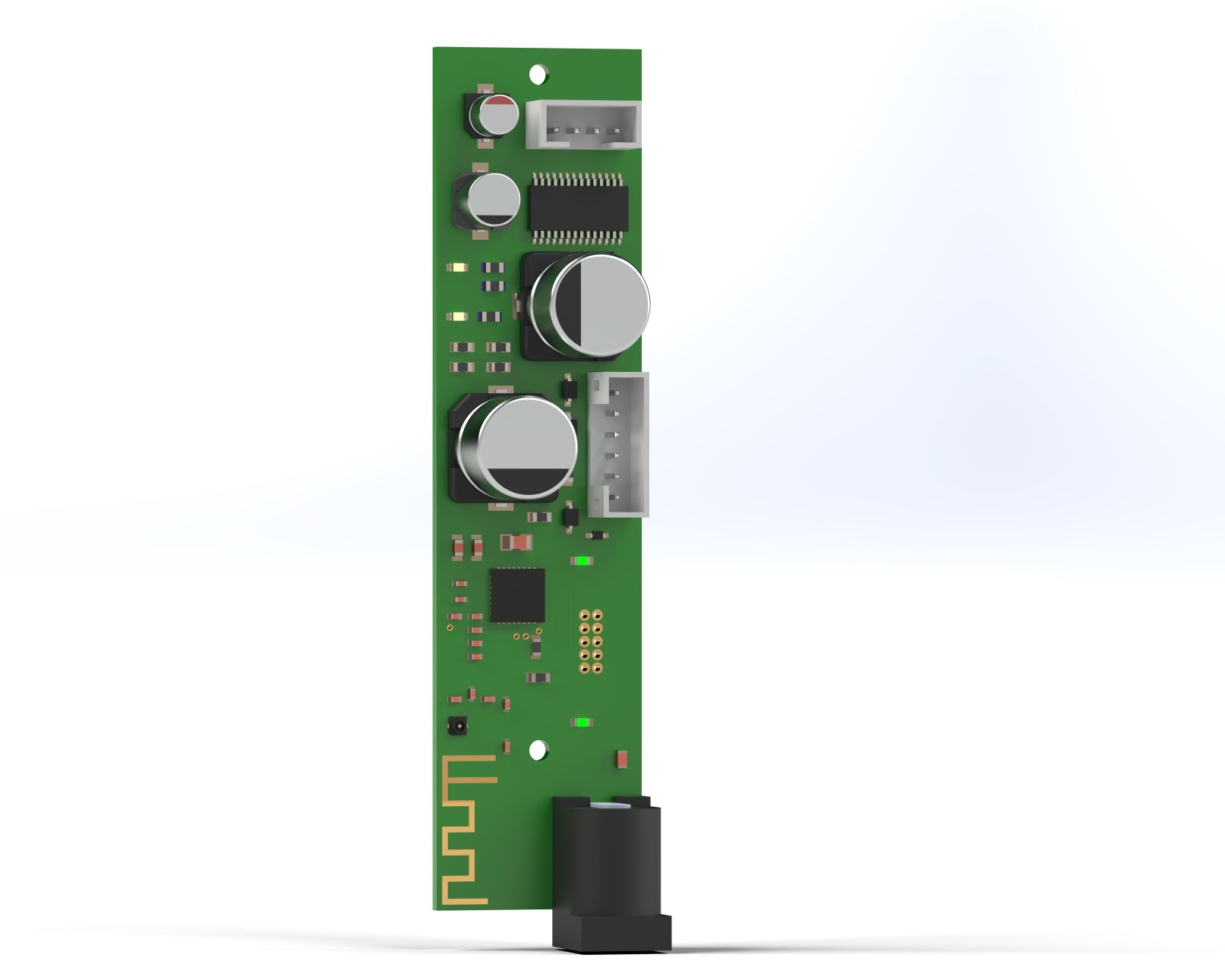

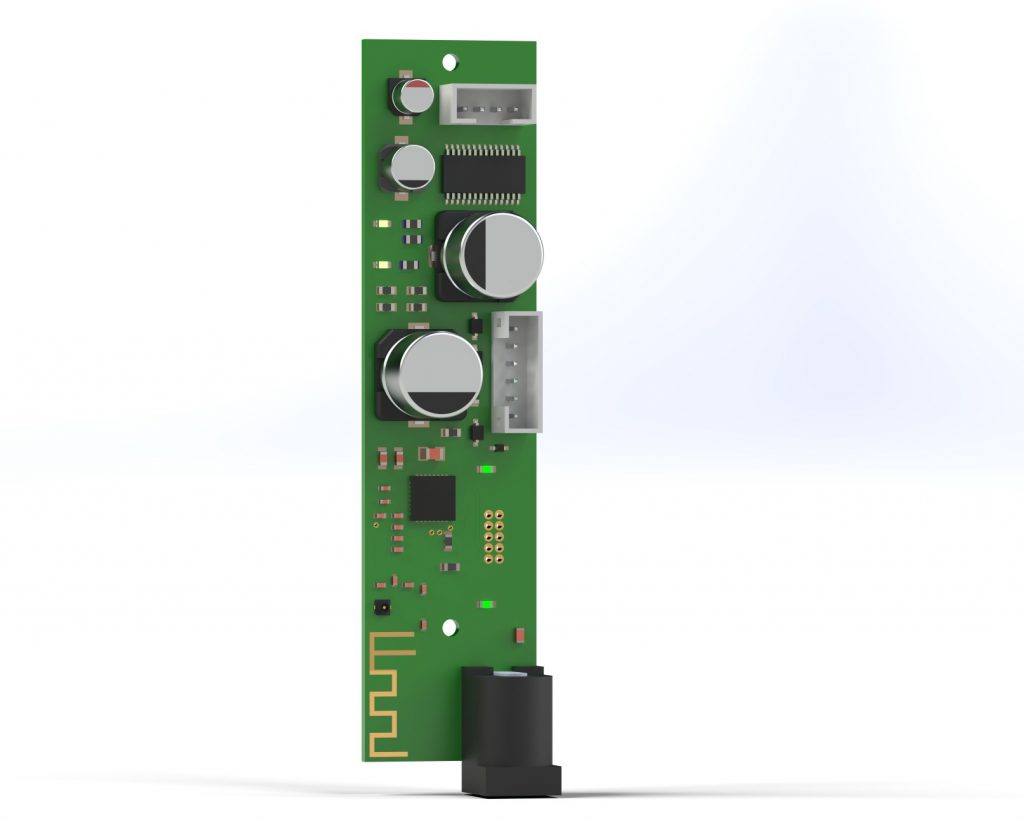

Single Axis Stepper Motor Controller

  1. Home
  2. Products
  3. Single Axis Stepper Motor Controller
Big features in a small economic package.

The programmability and flexibility of a high-end stepper in a low cost design.

Features/Benefits:

  • 7 Amp peak current (3 Amp steady)
  • Overcurrent protection
  • Up to 1/16 micro stepping
  • Under voltage lockout protection
  • Predictive current control with adaptive delay
  • Programmable speed profiles

Programmable for:

  • Speed control
  • Speed control with limit switches
    • HOME, STOP_CW, STOP_CCW

Specifications

  • Input voltage 10-30 Volts (12 and 24Volt operation)
  • Supercapacitor backed Real Time Clock
  • -20 to 70 degrees temperature range
  • Configurable via free downloadable GUI thru USB or Ethernet
  • Mounting: Bare board with 4 mounting holes
    • Bare Board size: 3.25” X .800”

Communications Options
