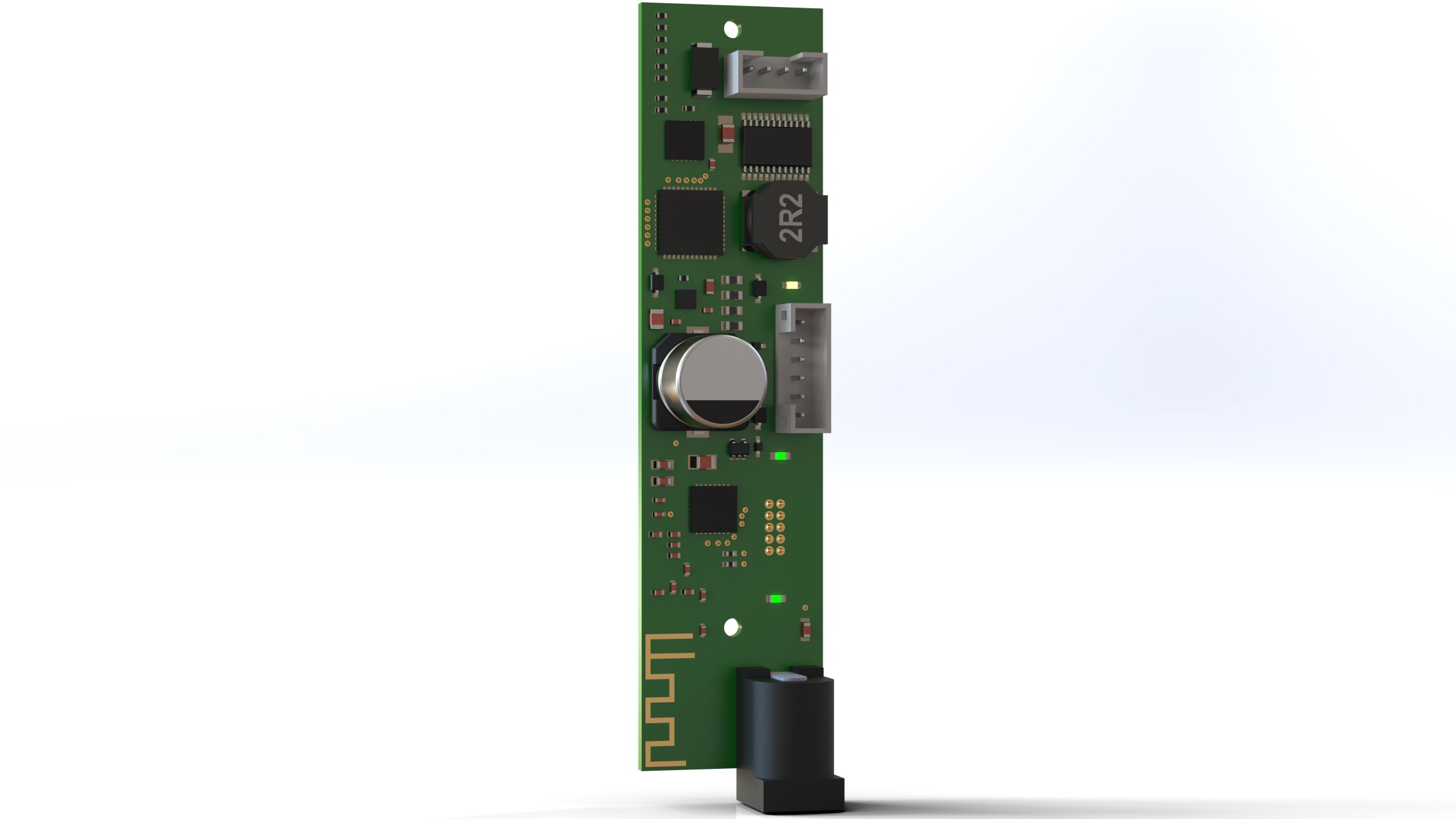

Single Brushless Motor Controller

  1. Home
  2. Products
  3. Single Brushless Motor Controller
Big features in a small economic package.

The programmability and flexibility of a high-end servo in a low cost design.

Features/Benefits:

  • 3 Amp peak current (2 Amp steady)
  • Overcurrent protection
  • Works with Wye and Delta type motors
  • Lock detection
  • Under voltage lockout protection
  • Sinusoidal output voltage for ultra-quiet operation
  • Integrated TACK feedback
  • Programmable spin up

Programmable For

  • Speed control
  • Speed control with limit switches
    • HOME, STOP_CW, STOP_CCW
  • Encoder input for servo control with
    • Tunable PID servo position control
    • 24 bit position resolution

Specifications

  • Input voltage 10-30 Volts (12 and 24Volt operation
  • Supercapacitor backed Real Time Clock
  • -20 to 70 degrees temperature range
  • Configurable via free downloadable GUI thru USB or Ethernet
  • Mounting: 4 mounting holes
    • Bare Board size: 3.25” X .800”

Communications Options

  • USB (Full Speed)
  • RS-232
  • RS-485 (2 wire)
  • CAN (Can Open)
  • BLE (Blue tooth Low Energy)
  • Ethernet

Control Options (protocols)

  • BLE (Blue tooth Low Energy)
